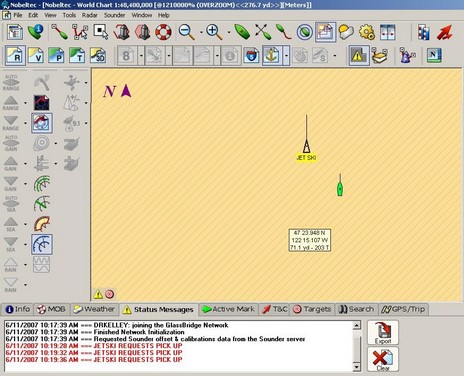

Well, my entry on how Rendez-vous tender tracking uses AIS message conventions seems to have confused even some AIS savvy folks (sorry, Del). To be clear, Rendez-vous will not show up on anyone’s screen unless that screen is connected to a specific network of Rendez-vous radios. Rendez-vous just uses the AIS data structure so that plotting software does not have be modified to see the tenders in a network. Get it? I think it clever, but the folks who developed the Seetrac Tender Tracking systems aren’t so sure:

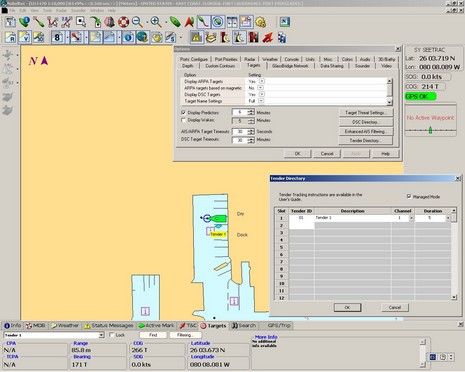

Tender tracking systems, like the Nobeltec/Seetrac combo discussed here last year, are a bit exotic (even a bit mockable). But I’ve seen the captain of a big charter yacht worry over a ditzy guest out on a PWC, plus I see how over-the-top some mega yacht tenders are getting (like the Vikal Limo). In fact, when I was in the British Virgin Islands last spring, it seemed like every big, really fine center console I saw turned out to be the “little” boat often towed by one much bigger. In other words, tender tracking can be serious business, and I think the new SeaCas Rendez-vous system looks to be a powerful solution.
Rusty commented that the FCC may make GPS mandatory in a DSC-equipped handheld VHF, adding that he’d “rather spend $300 on a 5 watt marine portable with GPS location rather than buy one of these FRS 'locators' {TracMe}.” I agree completely, and even see considerable safety value in a DSC handheld without GPS. If, say, my little Gizmo caught fire, I wouldn’t hesitate to hit the red button on my Standard Horizon HX470S. (Actually you have to flip off the cover, press the deep button hard, and wait three seconds, counted off on screen as shown above.)
Interesting! The just announced Spot is a waterproof Globalstar messenger and GPS combo that will purportedly let you alert the authorities (at least the U.S. ones) with your position, or ask for help from your friends or just notify them of where you are, or build an online track of your travels. It will be available in November for $149 with an annual service contract ranging from $99 upwards depending on what features you want to use. There’s not much detail on the Spot site yet, except for some pretty extreme fear marketing, but I’d guess that this product will get some real attention, even from some boaters. And I’m glad that, unlike TracMe, Spot is not confusing the market place by using the term Personal Locator Beacon (PLB). Safety-seeking boaters will be confused enough, what with this, possibly MOB Guardian, and who knows what else competing for our confidence.
PS 8/13 I spoke with the gentleman from Spot who was good enough to straighten me out about its technology in the comments section below. Indeed, Spot uses Globalstar’s reliable one-way messaging system, which has nothing to do with the failing amplifiers that are causing trouble for the voice/data service. I also learned about GEOS Alliance, which will be providing Spot’s 911 capability. Sounds interesting, and I look forward to possibly trying Spot this fall.

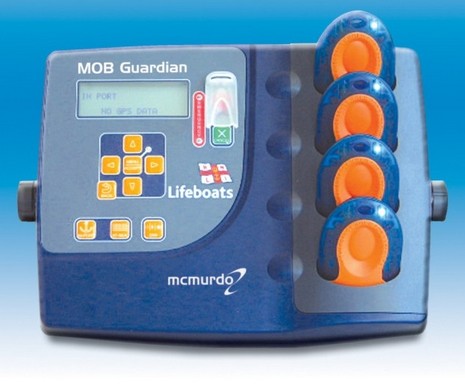

While on the subject of PLBs, MOB Guardian is an interesting combination of proactive personal MOB transmitters, like Raymarine’s LifeTag, with a satellite-based (Iridium apparently) communications station. So it can alarm both a boat and the authorities of a man overboard, or some other critical situation.

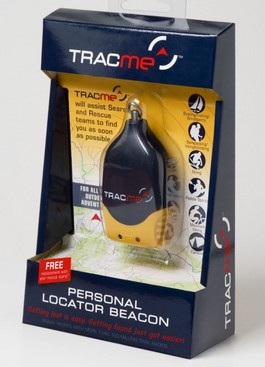

To be charitable, the new-to-the-U.S. TracMe looks to be a low cost, short range homing beacon that may have some safety value in certain circumstances. But it’s hard to be charitable about the company’s decision to market it as a Personal Locator Beacon, when it has nothing to do with the technology—and the international search & rescue system—that most of us associate with that term.
Wasn’t I tickled to discover that what looks like a fairly simple and affordable new remote boat monitoring device is being made right here in Maine. And further tickled when Boatsense Solutions cofounder David Jacques zipped right up and explained more about what’s in that little bomb-proof (epoxy potted) box…i.e., more than explained in the so far rudimentary brochure and manual. And tickled even more when I fired up a test unit last night, taught it my phone number, and successfully simulated a high bilge alarm, all in a few minutes. Boatsense is a GSM cellular modem set up so it can send text messages wherever GPRS data service is available (much of the world). It monitors battery level with just its power feed, plus has an input for most any kind of bilge alarm switch, and three more for whatever sensors you want to add (including output from an existing on-board monitoring system). That’s it; no screen, no GPS, no Web page…but it’s only $499 list and $180 per year for up to 20 messages a month (extras 10 cents each). Distributing partner Hamilton Marine has a package deal here, and if you do a search on “boatsense” there you’ll find a selection of sensor options. I’m going to test this baby more on Gizmo (wished I’d had it last July, rigged with a magnetic motion switch), but I’m pretty sure that it’s well thought out and may well be a winner.
Big thanks to John G. for a head’s up about the MAIB’s recent report called “Performance Investigation of Marine Radar Reflectors on the Market.” The full PDF is available on this page, along with a typically MAIB meticulous report on the tragic sinking that prompted it. Three sailors died after the big ferry Pride of Balboa apparently ran down the 26' yacht Ouzo early one morning near the Isle of Wight. At any rate, the graph above plots the average Radar Cross Sections of most available reflectors. You won't like those results once you understand them. The testers concluded that only the Sea-Me active reflector delivers a strong enough radar return to even meet the ISO 8729 standard, and some perform so poorly that they aren't worth carrying because they'll only give skippers a false sense of security! None of this real news; in fact I discussed similar findings here almost two years ago. But it's a good idea to be reminded that even good passive radar reflectors have limited abilities. Plus I was surprised that the MAIB didn't mention Class B AIS in their recommendations about collision avoidance. Did I miss something?
Word of ACR’s Nauticast B started an interesting, if sometimes fretful, conversation yesterday, and, whereas I’ve got the bully pit here (guest bloggers welcome), I’m going to exercise it. While the concerns about over-crowded AIS screens, Class B filters, and minimal big ship AIS plotting minded by minimal seamen all have truth to them—and should be part of every new AIS user’s education—I think their overall importance may be exaggerated. Here are some reasons why:
While I’m sure that San Francisco Bay in heavy fog can be terrifying, in my experience the scariest contacts with shipping weren’t in crowded ports but out in the open ocean, where any bridge with half decent equipment and personnel will likely be monitoring Class B targets. Lord knows there are some dunderheads driving very, very large objects out there, but I do not buy the notion that a high percentage of commercial sailors are oblivious to small boats.
This photo I took on Penobscot Bay illustrates another scenario. Shipping is light here—I’ve never seen two underway at the same time—but the traffic lane that runs down the bay crosses the route of almost every cruising boat going in or out of four active harbors. And it can get so foggy that…
Well, it seems that new Raymarine research pretty much obliterates concerns about the battery life of their LifeTag MOB pendants. A note from Product Manager Paul Tiller says that “…following exhaustive life testing by the engineering department, they are happy to report that the LifeTag tag battery will last for over 2000 hours of continuous usage, equating to 83 days or almost 12 weeks!” His excitement is understandable; that’s ten times longer than the previously published estimate! Plus, this morning, when I took the LifeTag innards shot above (bigger here), I did a little testing myself. I opened and shut the case ten times and then vigorously drowned the unit in a bucket. It survived fine. (Though the server support personnel I was day dreaming about probably would have sputtered some!)
