Raymarine LightHouse 14 sailing features, as good as they look?
When pretending to sail, I go for high performance. That's why the screen above seems to show Gizmo exceeding true wind speed while extremely close hauled. But pretending is also why I can't truly review the new sailing features that came to all current Raymarine multifunction displays last May, thanks to a free LightHouse 14 operating system update. Additionally, most of the features described in the press release are about racing, which I did little of even when I was sailing a lot. But let's walk through the new Raymarine MFD capabilities anyway, and hopefully we'll hear from sailors who've actually used these tools or the similar ones offered by B&G and Garmin...

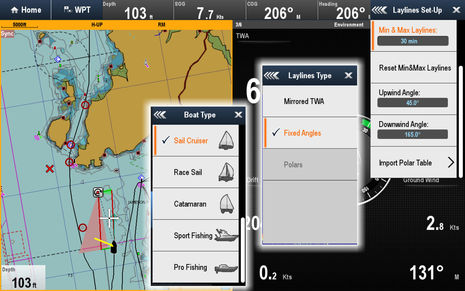

In fact, current Raymarine, Garmin and B&G MFDs can now all calculate laylines. To see the Ray version above -- or any of the sailing features in LightHouse 14 -- you first need to choose one of the three boat types that might typically tack to a mark. Then you need to activate a waypoint or route and decide which of the three layline types you want to use. Mirrored TWA (True Wind Angle) is the easiest, with the next tack simply calculated as the opposite of whatever angle you're currently happy with. Or you can establish target upwind and downwind angles, and then be reminded about what you think your boat can do. Note that if you enable a Min & Max Laylines time period, the shaded triangles will show the shift history -- 30 minutes was too long -- and that if your laylines separate by more than 170 degrees, they disappear (because you're reaching).

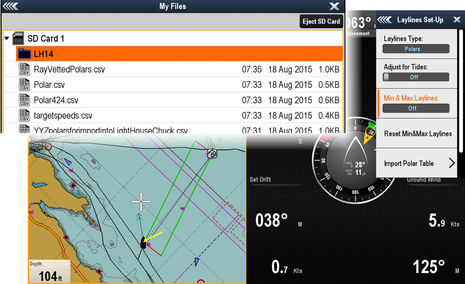

I believe that Garmin and B&G each have somewhat different ways of controlling and displaying laylines, but that Raymarine is the first to enable polars right in the MFD. That means the display can calculate laylines based on a table describing your boat's speed at various wind angles and points of sail. I found the upload process to be easy, though I noticed on the Raymarine Tech forum that there has been some difficulty with .csv files created on Mac computers. The forum is also a good place to snatch polar tables that will definitely work (like I did) and which you can modify for your boat, or you may find appropriate ones via Google (like these). Note that you may want more than one polar table for different sea conditions, desired comfort levels, or even motor sailing, and switching them on a Ray MFD is dead simple.

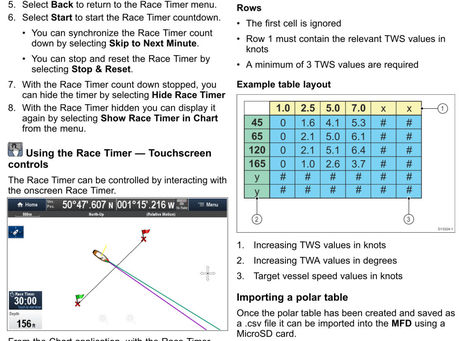

The Ray crew also created a nice LightHouse 14 New Features manual which can still be downloaded here, but may get folded into the regular user manual when LightHouse 15 actually becomes available. And yes, as this manual page suggests, LH 14 includes a racing timer and start line builder. But first let's look at a course route builder feature that is also unique to Raymarine at this point (I'm pretty sure).

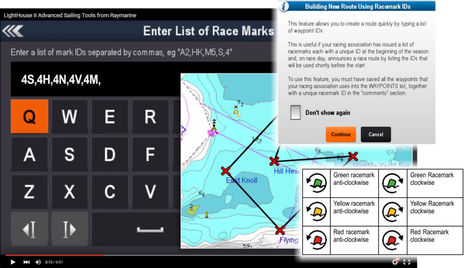

So there's a new choice in the My Data/Routes menu called Build Using Racemark IDs, which are just abbreviations you've added to the comments section of desired waypoints. You simply list them as shown in the Advanced Sailing Tools video screen captured above and, bada boom, the race route is done. There's even a helpful pop-up (upper right) when you actually try it. And perhaps the icing on the cake are the nifty racemark icons that Ray added to their waypoint library (which is such a useful but simple idea that I can almost hear the face slaps emanating from competitor shops). Of course, all this is particularly helpful when you race regularly in the same area with standard marks, but couldn't the quick route building also be useful to anyone who just cruises the same area in many different ways?

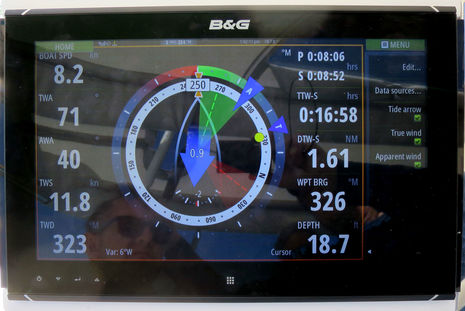

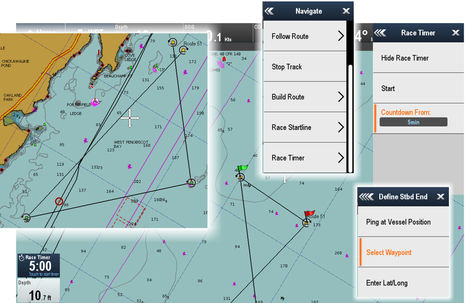

At any rate, the race course route building worked fine for me, as did the flexible race timer and the startline builder. But what's missing? Well, Garmin's Start Guidance diagrammatic window with values like Distance to Line and Time to Burn seems quite useful (and similar is available on B&G when H5000 gear is in the mix, ditto for polars). Perhaps what is more important, especially for cruisers, is that Raymarine does not yet seem able to total up the predicted laylines to get the useful info B&G calls SailTime, seen below as TTW-S (Sailing Time to Waypoint) and DTW-S (Sailing Distance, and there's also ETA-S available). I don't think a Garmin MFD can do this math either, though it may well be possible with some of the Nexus add-ons.
But of course all this is subject to change (if I did get it right), and that's the bigger picture here. Raymarine LightHouse software went for years without doing much specifically for the many sailors who use Ray gear and then, pow, this whole feature bundle arrives for free and works on every MFD they've made for a while. And every MFD developer is capable of such nice surprises these days, and of course all are regularly improving the features they already offer. Rejoice, at least until that dreaded day when your main system manufacturer feels the need to upgrade its hardware so it can do things yours never will.
Now who out there has sailed or raced with Raymarine's new features or similar? What worked for you, what didn't, and what else do you want?
I have my fingers crossed for a new release of sailing tools in a future release, as i otherwise love my new raymarine mfd.
Until then, the race tools go unused except for the race time. I like the race timer vs. my kitchen timer, because with Raymarine if your off by quite a bit at the 5 min start, hit it again at 4 or 1 minute, and it gets right back in sync.
The big disappointment is the lack of time to burn coming into the start line, without those features I don't find much value in performing the numerous steps to setup start line. When it does come (hopefully it is added) I hope they add a capability to define where your GPS is relative to the bow of the boat, as my gps is on the stern of my 39 foot boat. Depending on wind conditions, they can make a difference of 4 to 12 seconds (2 knot vmg to windward = 12 seconds).
It would also be ideal if there were many less steps to jump through sub menus to setup the two ends of the race line. I would appreciate if the number of screen presses were cut in half! For example if I could just choose the two ends of the line, without choosing starboard and port first in a sub menu, Raymarine could cut out a bunch of presses, then guess what side of the line I am on (almost always the start side) and let me click once to swap port/stbd pin if I was on the other side.
A crushing disappointment is the layline feature being erratic, this could have been so useful to cruisers, especially considering Ray included set & drift in their math for laylines (go ray!). The layline feature is entirely useless right now as the laylines are very jumpy, they are moving around wildly, by 30 degrees or more every few seconds, which is a big surprise having really stable wind, heading, and boat speed at the time using some great sensors on my boat (airmar weather station, raymarine's EV1). This needs to be fixed
Some other features that would be nice to have after time to burn is added, and laylines are fixed (both racing and cruisers)
#1 That the ST70 wind displays and MFD would have an option for displaying target stw based on current wind angle and speed, so my crew and I can see how close we are to target speed by choosing STW in a nearby window.
#2 Expand the existing polar feature, to include different sets of headsails. Then while racing, have a button somewhere to indicate which headsail set we are using (.e.g J&M140, J&M155, SPIN140, SPIN155, SPIN165)
#3 Just like being able to add an adjustment for leeway, add some fine tuning for wind offset. For example let us have a table where we can enter wind corrections (30 AWA port +3.5, 40 AWA port +2, 50 AWA port +0.5) These offsets are intended to compensate for how the wind instrument is effected by air currents coming off our headsails and hitting the wind sensor.
#4 Same adjustment for our speed through water sensor, but sensitive to us being on a port or starboard tilt and how much. Most of our boats misreport the stw based on heal, and if we are tilted port rather than starboard as our stw sensors are not on the centerline.
