In the photo above, taken on an Etec/Lowrance demo boat in Miami, I’m setting up a “Custom Gauges” window, and this particular screen is showing me some of the data available on the NMEA 2000 (LowranceNet) bus, specifically what’s coming from the port side Etec outboard. The same data would be available to any other displays on the bus that cared to recognize it, which could include, of course, Lowrance’s LMF-200 and -400 digital gauges (see test system). I think it’s slick. For one thing you’ll notice some data that you’ve likely never seen on a standard engine gauge, like load percentage (which I understand can be very useful for spotting a problem like a bent prop). For another thing, you’ll never lose sight of any particular number, like RPMs or oil pressure, because if one gauge or screen fails, the data is still available everywhere else. Plus, of course, all the data, and power for smaller sensors and gauges, is in one cable.
But there is one little caveat, as grumbled about yesterday by Panbo correspondent Chris. It is perfectly legal for a manufacturer to send a certain percentage of proprietary messages through the 2000 network (I’m not sure of the exact percentage). This makes sense, even encourages innovation. But in Evinrude’s case the result seems a little rude. You see the company’s I-Command gauges are very obviously OEM’d by Lowrance. The only difference is that their firmware can read and display proprietary engine messages, like diagnostics, and even control functions like instant self winterization (very cool)…and, according to Chris, they are much more expensive. Gotcha! I talked to an Etec representative about this and he said the policy was not written in stone; in other words, Etec might open up their private messages to Lowrance and others. But then Lowrance or whoever would have to write code to use those messages. In some ways this detail of the NMEA standard is a potential strength, and you’ve got to give Evinrude credit for all the data it is opening up (Note: everything below, including precision fuel flow from the ECM, is 2000 standard data). But I sure understand how this proprietary/open data detail, especially along with the cable dissimilarity discussed yesterday, could frustrate a guy like Chris, who’s just trying network a boat like he heard NMEA 2000 could.
Well, it was odd really; the very day I blogged about how nothing seemed to be happening with NMEA 2000 cabling issues and how well a proprietary LowranceNet backbone worked with a standard NMEA 2000 backbone (annoying a couple of you), I learned that changes are in store for both. Good changes! The information came in the form of a NMEA press release titled NMEA 2000 Working Group Completes Its Work on Cable and Connector System. It’s not online, and was darn vague anyway; it took me a few e-mails to tease out the following:
* After 18 months of studying the possibility of an alternate lighter, cheaper NMEA 2000 cable and connector standard, the subcommittee decided it wasn’t necessary. The main reason given is that Molex, a prime supplier of the connection hardware, promised a “substantial price reduction” in the existing cables and connectors (aka “the physical layer”). That’s the Micro version of the 2000 physical layer seen upper right in the picture (bigger here), and sold by Maretron.
* The current Micro T connector seen in the photo retails for about $21, and a 3 meter made-up cable is $44. That’s actually not all that expensive when compared to some marine electronics proprietary cables, but it has put off some boat builders and electronics installers. The new Molex gear—which, by the way, is also sold as DeviceNet— will probably have more plastic parts, but will be something like 25% less expensive. That’s good.
* Perhaps even better, in the same NMEA press release Lowrance announced that its proprietary twist on connectors and odd pin layout (seen above) are history. Next year all LowranceNet connectors will be the NMEA approved screw on variety. That even includes the plugs on back of their displays, which is not actually required by the standard (so far, only Maretron makes devices with a standard NMEA 2000 plug on the back). Lowrance will of course provide adaptors so that all current LowranceNet gear can adapt easily to the new stuff.
* And, finally, Lowrance says that it anticipates making this change without raising prices. Which is really something given that several current LowranceNet sensors cost $50 total, which includes almost 12’ of cable, a T connector, and the sensor!
Why did NMEA take a year and half to say NO to a 2nd cable standard? Why did Lowrance offer its own 2nd cable standard for just a year? I don’t really understand what happened, but the future (perhaps the result?) looks good. Pretty soon there will be several choices in approved NMEA 2000 cabling—from economical smaller boat grade to industrial workboat/megayacht quality—and they’ll all plug and play together.

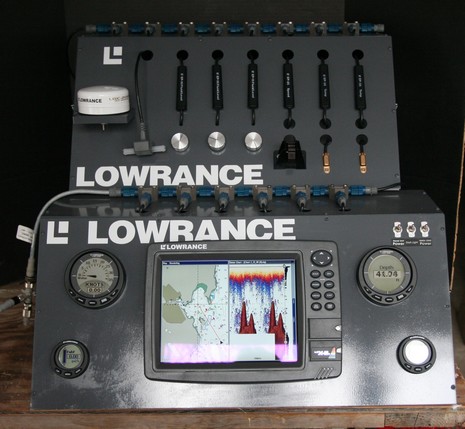

Check this out (big size
)! It’s the most elaborate test setup a manufacturer ever loaned me, and I learned a lot from it. What you’re looking at is a LowranceNet (aka NMEA 2000) network suitable for, say, a spiffy T-top fishing boat. On top are the sensors: GPS, fuel flow, 3 tank levels, water speed, and 2 water temps. On the bottom are 4 digital gauges capable of showing most any data on the network, plus the LCX 111c HD (hard drive!) fishfinder/plotter, which can also display gauge type data. It all works together quite nicely, and in Miami I got a ride on an actual T-top equipped with all this gear plus a pair of NMEA-2000–talking Evinrude Etec outboards. I saw smooth data integration across the network, with flexible and redundant displays. Oh, there’s a kink or two, which I’ll write about later, but today I want to address my earlier concerns about LowranceNet. If you recall, most of the gear above is NMEA certified but the backbone plugs and cabling are not. Back in Oct. I understood there’d be some resolution to this issue, but so far…nothing. However, I’ve been told by a Lowrance engineer that this cable, though much smaller and less expensive, meets the same specs for shielding, etc. as the certified stuff I tried last summer. Some of which I’m still holding on to (thank you, Raymarine and Maretron). That’s why I was able to try a simple patch cable (above at left) to connect a regular NMEA 2000 device to the LowranceNet backbone. I was even able to marry the Lowrance backbone to the certified backbone with various Maretron units and an E120 hanging off it. Everything powered up and was relatively happy. I do hope Lowrance can get its cable fully legit, but if it works fine—and it seems to—does it really matter?
If you checked out Octoplex yesterday you know it can do all sorts of fancy power management and monitoring tasks, but the more cynical might note that there’s a lot of electronic complications between you the boater and relatively simple tasks like turning on the lights! It’s smart then that Moritz Aerospace is pretty paranoid about what could go wrong with a system like this. Hence:

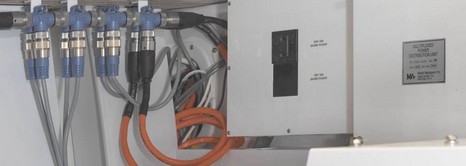

* OctoPlex uses not one but two of the DeviceNet physical networks specified by NMEA 2000 (shown above, and bigger here). This is rugged, heavily shielded cabling, and this also means that there are two CAN processors in each network node. OctoPlex uses the primary network all for itself and the secondary one to connect to other NMEA 2000 systems, but if the primary fails, the secondary can fill in. Both networks are constantly monitored.
* Even if both network lines completely fail, all active AC and DC breakers stay on and continue to protect their circuits. The DC breakers actually have redundant back up power supplies. The AC breakers, by the way, are actually manual ones actuated by solenoids because it’s not yet practical to do AC with a MOSFET.
* If a DC electronic circuit breaker should fail in the ‘on’ position—that is, ZAP, be delivering current after you turned it off—the system will know it and blow a secondary fuse.
That’s a lot of built-in protection and part of why OctoPlex is an expensive system meant for big boats like the Vikings and Hargraves it will first be seen on. But, geez, look at how conventional boat wiring is evolving, seen below on a medium size Hinckley. That’s some beautiful work, bigger here
, but imagine the amount of labor involved. Imagine how hard it is to modify or trouble shoot! We are ready for an entirely new way to manage boat electricity, aren’t we?

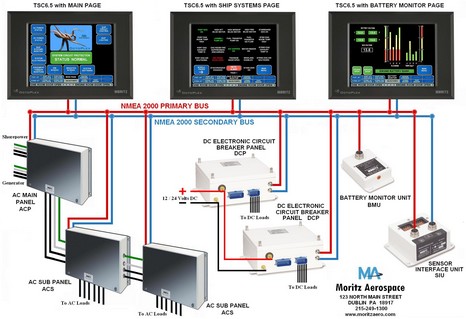

I mentioned OctoPlex when it received a special mention at METS; now I’m trying to write a column about it and the whole coming revolution in marine power systems. It’s not coming easily, I’m way past deadline, and so this will be short! Here’s the deal: electronic circuit breakers combined with data networks like NMEA 2000 mean the end of conventional circuit breaker panels. The concept is often called “distributed power” but Nigel Calder also uses “the three cable boat” in a series of articles he’s done recently in Professional Boatbuilder, Sail, and Yachting Monthly (none, unfortunately, online, but look down this page for Nigel’s pithy answer to the question “should I try this now”)). In its simplest form plus and minus cables carry power around the boat, teeing off wherever needed to an electronic circuit breaker (ECB) which is controlled by the third (data) cable. ECBs are also known as MOSFETs and they’re complicated animals, but have features like the ability to constantly measure voltage and amperage and even modulate amperage (i.e. dim light circuits). Combine those features with networked, microprocessor-based switching—and, hey, you might as well throw in tank, bilge, etc. monitoring since you’ve already got the network and screens—and you start getting something as powerful as OctoPlex. Check out a much larger version of the schematic here. This system can automatically shed power loads, protect individual circuits against brown out, setup custom dimming programs, tell you if a nav light blows out, and so forth…sky’s the limit. But can things go badly wrong on the three cable boat? Hell, yes! Which is why OctoPlex is redundant every which way. More on that later.
The 8000i has a lot of sizzle, and some interesting new charts, but let’s start coverage with a system overview (bigger here):
* The sunlight viewable multifunction displays are Windows PCs; the 12” is self contained while the 15” is broken into monitor, processor, and keyboard modules. (Both units are also touch screen, but more on that later).
* This is a ‘masterless’ network, meaning that sounder, radar, cameras, and even the various sensor networks go directly to an Ethernet hub. If one PC is shut down, or craps out, it should not affect what the others can do. Several manufacturers have network black box sounders, and a couple have Ethernet radars, but this is the first time I’ve seen network cameras or a Network Interface Bridge (USB, SmartCraft, and NMEA 0183, with—hooray!—NMEA 2000 coming in the fall).
* The only exception to this ‘masterless’ design is that only one processor can be an entertainment server, burning CDs and DVDs with the built in ‘jukebox’ software. But then any display can play from the music and movie library at will, audio going to a nearby stereo and video either playing right on the 8000i screen or on a TV.
* All the parts shown, and the necessary cabling, are supposedly waterproof and marine tough.
Yes, it’s expensive—the 12” retails at $7,000–-but the 8000i looks like a smartly designed system, with a lot of redundancy, power, flexibility, and pizazz built in. More details to come.
This Offshore Systems fuel sender sounds perfect…stainless steel with no moving parts, measures fuel tank level to 1% accuracy, installs and delivers data all via a NMEA 2000 trunk line, and it can reportedly detect water in the fuel! However, it costs $295 with a 20” probe, more with longer (cutable) probes, and I’m just a tiny bit dubious about the water sensing capability. This sensor is “capacitive”, which I think means it uses the same technology as the “dielectric” bilge pump switches I discussed here once. If the Offshore sender detects water in your fuel it sends alternating “full” and “empty” signals. I wonder if a small amount of water might trigger this, and then you wouldn’t know how much fuel you had? Maybe I’m just being paranoid, but I’d like to hear about successful field trials. Note that Offshore has a new 3125 2000 Sender Adapter which will work with standard resistive senders, and thus with any fluid {corrected 11/28; it turns out that Maretron is not distributing Offshore's sensors (but is working on its own NMEA 2000 tank sender adapter)}.
Update 11/26: I got this note from Offshore Systems: �The water sensing feature really works. Whenever the bottom of the probe detects water the sender sends alternate tank full / tank empty messages at the default rate of 1 message every 2.5 seconds. This will make any display very noticeable to the user to indicate that this tank is contaminated and should not be used until it has been drained and cleaned.� Sounds good�like a little water floating on half a tank of diesel�where it won�t really cause problems�also won�t set off the alarm and stop tank level measuring.
The Garmin media team was busy last night, distributing a stack of complicated press releases and a pile o’ product shots, all to describe some 20 new units that were introduced at METS today (and will go on sale next March). Here are the bullet points I’ve gathered so far:
* New BlueChart G2 (next generation) charts feature 3D perspective, tides and currents overlay, and other enhancements, and a slew of new plotters, plotter/fishfinders, and network multifunction displays (like the 3206 above, bigger here) come preloaded with all U.S. coastal G2’s. (NOAA’s freebie policy strikes again!)
* But G2 is a two tier product, sort of like what Navionics is up to, and G2 chart cards add more data like detailed coastal roads, more POIs, and color aerial photos of critical areas. Garmin says that U.S. cards will start at $199, “far less than competitors”. (But I don’t know what that means exactly). G2, by the way, is not compatible with older plotters, except the 3000 series, but older BlueCharts will work in new plotters.
* Garmin has a new network called CANet, which can connect the smaller 292, 392, and 492 plotters with two new black box fishfinders or the new 398 full fishfinder. It sounds like a CANbus variant but is 1 megabit (?). The GSD-22 bb is Garmin’s “first digital sonar, allowing for more precise target separation and depth performance” and also supports Garmin’s MarineNet (Ethernet).
It’s going to be interesting to see how all these products stack up. I’m wondering, for instance, what Garmin’s version of 3D perspective looks like, and whether G2 will also come on CD. And, of course, pesky observers like Panbo reader R.O. are asking “what about NMEA 2000”. More to come, to be sure.
PS It will also be interesting to see who picked up DAME awards at METS today; this is one of the better innovation competitions out there, I think. And, by the way, Jeff Hummel is at METS and says he’ll write a Panbo guest blog on his findings.
At the NMEA show, Maretron showed off a prototype of this ultrasonic wind sensor that also measures air temp, barometric pressure, and relative humidity. In other words, the WSO100 Weather Station Outdoor is quite like Airmar’s WeatherStation. Neither, in fact, is actually a shipping product yet, even though Airmar’s was introduced at the 2004 NMEA show (the power boat model is supposedly very close, and is now detailed in a .pdf at Airmar’s Web site). Airmar’s first unit, for about $1,000, will talk in NMEA 0183 and will include an electronic compass and GPS so it can calculate true wind speed and direction. Maretron’s will cost around $600 and will need heading and SOG info from the NMEA 2000 network to do the True calculations. Airmar plans to eventually introduce a 2000 WeatherStation and Maretron may very well do an 0183 version of its sensor, which, by the way, it engineered from scratch. I hope to try both when possible, and figure that having two ultrasonic wind sensors on the market (beside the French original) will be good for consumer awareness (and a healthy competition).
I got a peek at this display during NMEA , and I’m looking forward to going deeper in Lauderdale. What’s the docking display? How much control does the user get over engine alarms? Are detailed diagnostics also available? This Northstar 6000i is (theoretically) connected via a gateway to a Mercury inboard or outboard engine equipped with SmartCraft, a CANbus data networking and control system with many similarities to NMEA 2000. The big difference really is that SmartCraft was developed by Brunswick and is being used by its New Technologies group (MotoTron, Northstar, Navman, et al) mostly in boats build by Brunswick. Other companies like Airmar, Onan, Dometic, Xantrex, and DNA Group have gotten involved, but SmartCraft is essentially driven in a top-down, business-like way. By contrast, NMEA 2000 sometimes seems like chaos. Maybe that’s why there are currently lots more SmartCraft boats out there than NMEA 2000 ones. It may be a parallel universe, but if it works well for you…well, cool. Then again I’ve heard that there are some downsides to SmartCraft worth discussing one day.
Note that the 6000i above is a new 12” model, meaning that you can now get these networked multifunction displays in a phenomenal five sizes—15”, 12”, 10.4”, 8.4” and 6.4”—which is great for folks designing a multi display helm like this (put together, unfortunately I think, before the 12 or 15 inch models materialized).
