My first screen shots of Slancha’s Garmin 18” HD radar drew a lot of interest and I look forward to more experimenting with it later this week, but the real subject of the shot above, and this entry, is the fuel management information shown on the bottom bar. The boat’s owner, Peter Smith, installed a GFS 10 fuel sensor on the system’s NMEA 2000 network, and he’s tickled with the results, particularly the miles-per-gallon info, which has shown him where the sweet spots are on his power curve. That “Economy” number—a calculation based on flow versus Speed over Ground (from GPS) or Speed through Water (your choice)—may change with the boat’s load, bottom growth, sea conditions, or engine tune, but he’ll be able to see it happening.
FloScan has been measuring fuel flow for over 30 years, so I’d guess they have a darn good idea how to do it. It’s refreshing that their new NMEA 2000 Diesel Monitoring System focuses on what they know well and let’s the resulting data go wherever you want. The flow sensors and those “hubs” seen above, bigger here, are all you need. Yes, you can buy FloScan’s round gauge upper right, but you don’t need to. All data is sent in standard N2K messages, and the little calibration needed is done right in those boxes. The rest of this NMEA Conference booth had Simrad, Lowrance, and Raymarine displays all showing the gallons per hour, remaining fuel, etc. Note that FloScan’s site says that, “Furuno is currently developing NMEA 2000 products which will interface with our system.” But we knew that, right, and will know more when NavNet #d debuts (hey, I might live blog it, if there’s WiFi there). Note, too, how the port engine is “Instance 0” in the N2K system and the starboard engine is set as “Instance 1”. You can set that with a switch in the hub. But who the heck decided to start instances at zero instead of one. Wouldn’t it be better if, say, GPS #1 was instance 1, GPS #2 instance 2, etc.?
I've been testing this PulseTech Xtreme Marine 12v “five-stage maintenance” charger for a month or so, and am impressed. What with Annie G's two batteries—one for the electric trolling motor, another for backup and electronics—plus some old batteries I’m trying to keep alive until someone buys Ralph, I’ve had plenty of material to work with. I really like how the Xtreme first tests a battery and then tells me with simple to understand LEDs what it’s up to as it goes through its multi step process. And while it’s impossible for me to really see the claimed desulphation process in action, the batteries certainly seemed very well charged. (Plus PulseTech has some scientific studies, using x-ray, that seem to back its claims). I was even able to use it to bring back a dead flat battery which someone around here had allowed to go completely dry; I did have to start the charge with a conventional “dumb” charger but the Xtreme (which first found it “bad”) took it from there and seemed to really perk it up. Charging a really low battery does take time, though, as the Xtreme only puts out 2.5 amps in bulk mode (5 amps claimed effective); hence the “maintenance” caveat. But you can just leave the charger attached to a battery indefinitely as it will stop charging and go into float/pulse mode when a battery is topped off. There are other pulse chargers and battery conditioners out there (a good explanation of charging, pulsing, and desulphation here), but Xtreme seems like a winner.

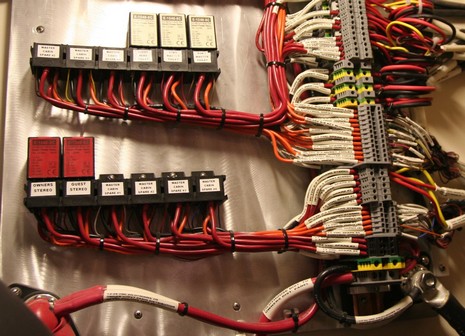

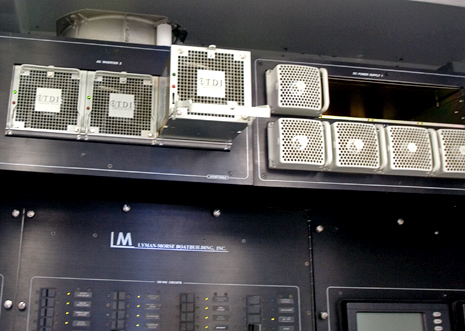

This week I spent some more time aboard the fabulous Electra, back at Lyman Morse after a month long trial/pleasure cruise to New York. I’ve come to realize that her owner, George Wallner, has a deep understanding of electricity that’s similar to the way some fine chefs I’ve met know the science and mechanics of their basic materials like, say, butter. Wallner is not only a talented electrical engineer but also a guy who’s run a company that manufactured mission critical electronics—credit card swiping systems—and a yachtsman who’s been seriously cruising a boat similar to Electra for ten years. Don't you want to see how he’s equipped his new ride?
Though CruzPro deserves more attention than it gets, as Panbo has noted before, I managed to let this neat new MaxVu110 multifunction display slip ever since METS. Too many electronics subjects, too little time! The Max110 is a monster, able to display up to five pages of data (from 16 stored configurations) in the three numeric fields and two bar graphs seen above. It has numerous possible inputs, knows just about every NMEA 0183 sentence written, and “contains built-in calibration curves for all popular engine temperature, oil pressure, fuel and tank level senders manufactured by VDO, Teleflex, Faria and Stuart-Warner”, including both American and European resistance ranges. And any field can be high/low alarmed. Finally, it comes with a Windows program that seems to make setting up all this instrumentation power easy. I can’t find the Max110 on CruzPro’s Web site, but it’s well presented in the online PDF catalog. I’ve got to think that this display could be useful to a geekish boater or imaginative installer, and hope we’ll get some reports about how it’s used.
IBEX, a great show I’m missing (it’s OK), announced its innovation awards today. One winner is Paneltronics’ PowerSign, which is:
“a multiplexed system for intelligent power distribution and management for any vessel using DC loads — meaning you can control and monitor all onboard electrical systems from one location, even remotely. The system comprises four main units: switches; power distribution units; graphical user interfaces; and communications cables.”
Sounds good but will it also handle AC eventually, or offer a NMEA 2000 interface, like OctoPlex? And how does it compare to DNA’s digital switching system, which just got a NMEA 2000 gateway. No answers yet at Paneltronics’ Web site.
Another interesting winner is Torqeedo’s folding electric outboard, which looks like it might be terrific for a cruising boat’s tender, though pricey I fear (made in Germany in small quantities). Meanwhile, here are the nominees for the METS DAME award this year; I look forward to seeing all the products, and who wins.
This Friday’s gizmo is the big kahuna of all the portable power packs that can typically jump start a car (or boat), run 12v gadgets, inflate a tire, and more. Xantrex’s top-of-the-line 400R also includes a 400 watt inverter, an emergency light, and an AM/FM radio with alarm! Inside is a replaceable 20 amp hour AGM battery which seems to have guts (and contributes to a total unit weight of nearly 30 pounds). In my experience, the 400R powered quite a bit of reciprocal sanding, and then smartly alarmed and eventually cut out when the battery went too low, or if I bore down too hard. That’s a digital watt meter showing in the picture (bigger here); when the inverter is turned off, it can show percentage of charge. This thing is obviously designed for emergency backup during hurricanes and the like, but I found it darn useful around my little back field boat yard, and it might have a place on some cruising boats. It’s fairly well made, certainly better than other jump start packs I’ve had. Xantrex’s page on the 400R is here, and a fellow named Jack has written a lengthy and careful review here (he’s right that it takes a long time to recharge, but I thought the radio performed OK, at least a low volume).
One of the things I enjoy about the marine industry is how an inventive boater—there are lots, particularly sailors for some reason—can still get a product to market. You’re looking at the world premier of Navlight Indicators…Larry Schaffer sitting in a rented booth at Strictly Sail Miami, ready to explain his very clever navigation light accessories. He has since put up an informative Web site, so I’ll just note that he’s created little LED’s that will show you just how your running/anchor lights are switched, plus a current sensor system that will make them blink if a light fails. You can get a dedicated panel that showcases the idea, or parts so you can upgrade an existing panel. Good job, Larry!
Navagear found a solid state bilge pump switch that can discriminate between fuel/oil and water, so presumably you will not pump the bad stuff overboard. I’m just a wee bit skeptical about how well this works in the real world. What if there is just a little oil swirling around your bilge; might the switch shut down when you didn’t really want it to? A while back I tested SensaSwitch (above), another solid state “float” switch that I liked a lot. It does not claim to “discriminate” against hydrocarbons but one reader wrote in claiming that oil films made it stick on or off, which of course is what no-moving-part switches are supposed to avoid (my test didn’t include oil!). The company tried to investigate the claim but the guy said he’d thrown the switch away, and his email went dead, so this report is very much hearsay. Does anyone out there have either SensaSwitch or Water Smart Switch installed in their boat?
