Handheld DSC VHF/GPS, I wish!

Aug 10, 2007

DSC_Alert_HX470S_cPanbo_lr

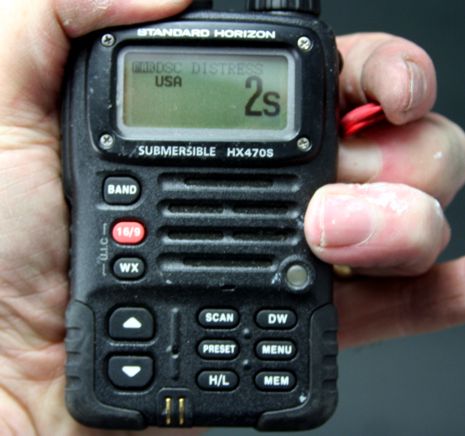

Rusty commented that the FCC may make GPS mandatory in a DSC-equipped handheld VHF, adding that he’d “rather spend $300 on a 5 watt marine portable with GPS location rather than buy one of these FRS 'locators' {TracMe}.” I agree completely, and even see considerable safety value in a DSC handheld without GPS. If, say, my little Gizmo caught fire, I wouldn’t hesitate to hit the red button on my Standard Horizon HX470S. (Actually you have to flip off the cover, press the deep button hard, and wait three seconds, counted off on screen as shown above.)

Continue Reading

Boatsense revisited, works good

Jul 25, 2007

Boatsense_Test_cPanbo

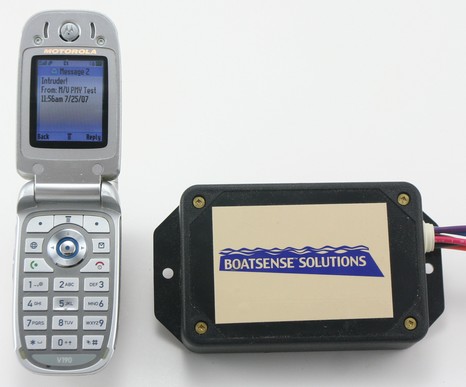

Hot and humid in Maine, a good chance to hang in the lab with the Boatsense Solutions remote monitoring system I’ve been meaning to test further and photograph. Today I learned to program it so it will send the particular message you might want depending on the particular sensors you’ve hooked to the three auxiliary inputs. You have to get the syntax right, but once I sent the text message “#AM3Intruder!” to the monitor’s phone number, then broke the connection between the Aux #3 wire and ground, the unit called me with the “Intruder!” message above.

Continue Reading

KVH TP V7, big news for big boats

Jul 12, 2007

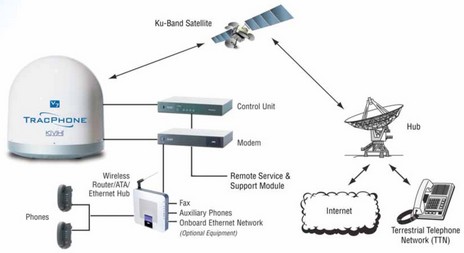

KVH_TPV7_diagram

Game change! This morning KVH announced the TracPhone V7, a marine VSAT system capable of delivering truly broadband Internet, including telephone (VOIP), KVH_TPV7_size_graphicto big-budget yachts cruising much of the Americas and Europe (including transatlantic, see below). But you don’t need a mega-size platform for the V7’s dome, which is an astounding 85% smaller than what it currently takes to get this level of service (and 65% smaller than slower Inmarsat Fleet 77 domes). Hence the “mini-VSAT Broadband” name for the associated satellite service, whose costs are also said to be radically smaller than existing offerings. For instance, the per megabyte price at 512Kbps-up/1024–down is $5 versus $32 for Inmarsat’s 128/128 F77 service, and there are various bundles and monthly plans that bring it down further.

Continue Reading

Cell data rules, scary

Jul 4, 2007

Motorola_Cell_Modem_c_Panbo

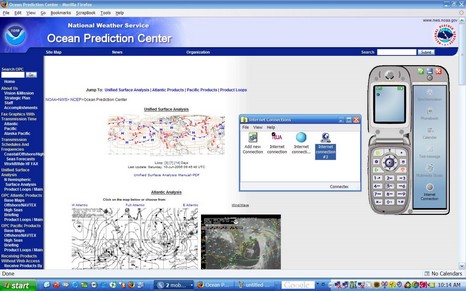

My latest PMY electronics column, “Connected Cruising”, is now online and here’s a full size version of the screen shot I used to illustrate a successful online cell phone venture using Motorola’s Phone Tools software. A PMY forum comment from Robert Stronger adds some interesting detail to this story:

Continue Reading

Panbo offshore, 3rd try

Jun 27, 2007

VoJ_Malcom_Dolphin_c_Panbo

6/28 I’m now ashore and able to upload this shot of Malcom Willard showing off a three-meal dolphin on a lake-like Atlantic ocean. It was taken on Tuesday, a few hundred miles south of the Gulf Stream. I didn’t manage to get the text below online until Wed. afternoon. Note that no electronics played a part in the fish’s demise:

Note to self: If I ever get to try this again---posting a Panbo entry from offshore with a sat phone---

Continue Reading

Wetter Infobox, smart design

Jun 4, 2007

Wetter_Infobox_c_Panbo

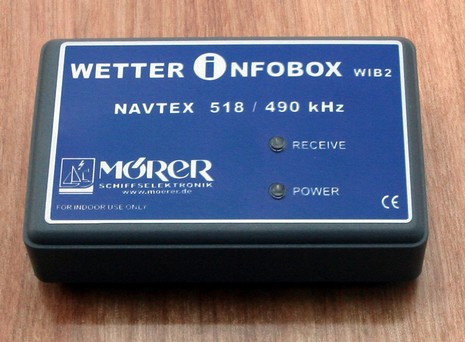

Back to business and a big thanks to Roy Mevers, Electra’s professional skipper and a freelance offshore racing navigator, for showing me this little cutie. Who knew? Inside that box, which is maybe four inches long, is a dual channel Navtex receiver, a ferrite rod antenna, and a re-chargeable battery. It can run three days on its own and has enough internal memory for “762000 indications”, which I’m guessing means characters of Navtex weather reports, nav aid warnings, etc. Plug it into your computer via USB and the batteries charge while you can use any web browser to access the reports, and control the receiver, via an attractive master page living in the box. Apparently the instructions simply explain how to make a shortcut/favorite to the box, and thus the Wetter Infobox can work with Windows, Macs, even Linux, no software needed, or even power and antenna cables. How smart is that?

Continue Reading

Globalstar bet, & the South Atlantic Anomaly

May 15, 2007

Globalstar Bet

A Panbo reader (thanks, Jon!) points out that Globalstar now has a enticing four year contract featuring unlimited airtime “for calls placed from the Home Service Area of the US, Canada or Caribbean,” including long distance in North America, and free “Express Data Compression”. Of course the rub is the degrading amplifier issue discussed here in February. Globalstar’s contract page is pretty frank about possible “significant gaps in satellite availability” before they get their new satellites up (and you get the deal’s cherry-on-top, great unlimited service for 19.99/month). But a reasonable-sounding Wikipedia entry goes a bit further, suggesting a possible “total loss of service in 2008.” That’s also where I learned about the South Atlantic Anomaly, a dimple in the van Allen radiation belt that may have toasted those amps.

Cobra F80 #2, in the lab

May 9, 2007

Cobra_F80_2_cPanbo

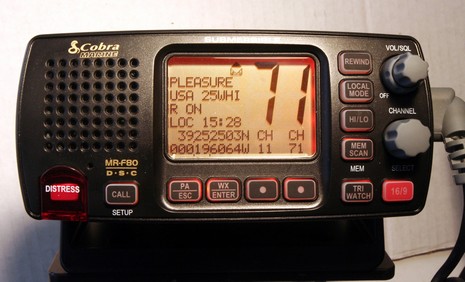

I’ve got to say that this VHF, also seen yesterday,  is pretty darn impressive, especially for the money (under $150 from some sources). Of course I love the Rewind feature, and, unlike the handheld 425, it does work on the weather channels. But more important, really, it sounds good and scans well, and that’s compared to two pricier units I have down in the “lab”, a Uniden 625c and an Icom M504. I must say I like the bigger knobs on both those units, plus the separate squelch, but the F80 is more compact. Still it has a large display, seen above and bigger here. Note the somewhat odd Lat/Long display (and, yes, I was feeding it an odd location from the laptop), but I think that high precision means that the set has taken care of the M.821 gotcha (though I haven’t yet tested it’s ability to plot a DSC call).
   Note too the two soft keys, used here for fast favorite channel selection, but also useful when you move through the well thought out menu system. I don’t think any other VHF, aside from the high end Ray218, uses soft keys. I find the screen almost as readable as the Icom, but the Uniden remains my favorite, even though its screen is the smallest of the bunch (color counts!). And how about that basement lab, bigger here? Yes, friends, the test Garmin 545s may have gone missing for a couple of weeks—glitches happen—but now it’s joined by a 430s, and a GXM 31 antenna. More on those tomorrow.

Panbo Lab2 copy

Cobra F80, and what to do about G.O.?

May 8, 2007

Cobra_F80_cPanbo

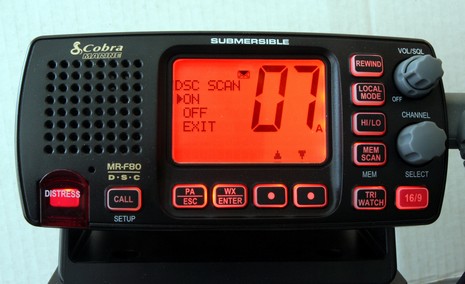

Well, Mr. Guntis Ositis did get me back to testing the Cobra F80, which is a good thing, but otherwise the man has got me riled. You may have seen the comments section of an old Rescue 21 entry where we got into it, and further investigation reveals that Ositis has been spreading his so-far unverified, but dire, concerns about DSC VHF radios well beyond Panbo. This letter in the March Latitude 38 is pretty much the gentle version:

DSC SIGNALS INTERRUPT RADIO TRANSMISSIONS
   In my opinion, your new DSC marine radio may be a can of worms. In many DSC radios, the DSC signals will interrupt voice operation of the radio. These signals can't be heard, but if there are a lot of them, they can make the DSC radio unusable for voice communications. In cases of critical construction or ship docking, captains should not activate the DSC function of their radios.

Continue Reading

Workin the WiFi, & Skype at SetSail

May 7, 2007

Zia_wireless_card

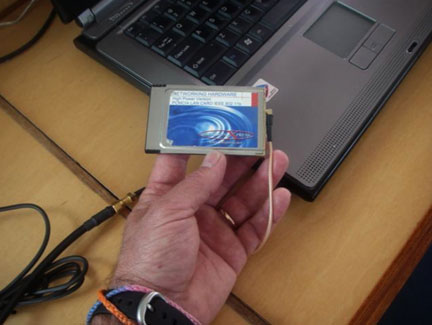

SetSail recently put up another useful survey of what their far flung group of cruising correspondents is doing for communications. This time the theme is “Skype & WiFi”, which is no surprise, especially after my visit to the B.V.I. I regularly saw people Skyping away at the Bitter End’s pub, and many a cruiser’s first question after tieing up his or her dink was regarding the state of the resort’s free WiFi. At SetSail I was particularly intrigued with the post of Joe Boyle, who’s now in Europe with his family aboard a 51’ cat. Joe’s having pretty good luck using a Broadband Express PCMCIA card (above) along with an 8dB antenna he hauls aloft with a topping lift. He reports better coverage than boats with the WaveRV, but now he’s planning to install a 1 watt amp and 11dB antenna (purchased from I know not where). He’s also figured out how to run a Linksys modem on 12v to spread the Internet connection to all three of the boat’s computers (and a few friends in the anchorage).
