The brand new Simrad Go7looks like an all-glass version of the Simrad NSS7 evo2 Combo, but its design may actually define an interesting new "standalone" glass bridge MFD style that trades some of the multi in multifunction for a much lower cost. The Go7's suggested retail price is just $799 without charts or transducer, and itsB&G Vulcan V7 sibling is also just $799 with an added bundle of sailing features. I put "standalone" in quotes -- and we need a better term -- because these chartplotter/sonar combos can make many useful connections over NMEA 2000 and WiFi, though they do not include the Ethernet needed to fully network with radars, other MFDs, and external sonar sources...

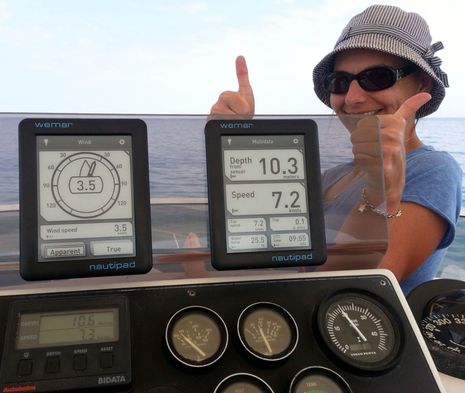

They look like excellent instrument displays, especially when you realize that they're portable, wireless, waterproof, touchscreen tablets that rarely need charging and shouldn't be wicked expensive. Unfortunately, though, they're not currently available. I hesitate to write about a discontinued product, but the seemingly well-developed Wemar Nautipad system above could come back on the market if another company wants to give it a go, and e-paper screens seem like an interesting idea for boats anyway...

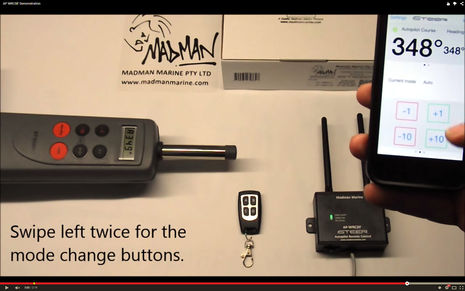

Some people think it's crazy to run an autopilot with a smartphone, so maybe it's fitting that a company called Madman Marine is the first to make this possible with Raymarine pilots. But then again, Madman's AP-WRC3iF comes with two fobs that run on a separate wireless frequency and that can also make course changes, initiate autotacks and change pilot modes. And it only costs about $235 U.S. plus shipping from Australia (with the fob-only model at about $190)...

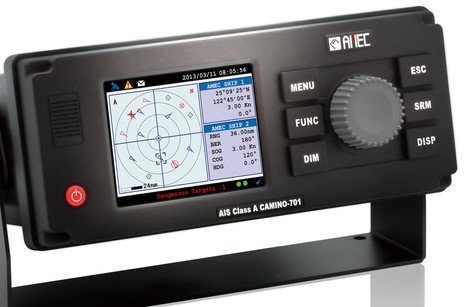

There are several reasons that a yacht or workboat might want to use an AIS Class A transceiver instead of Class B, even if they're not required to. With Class A you'll be seen by other boats from a greater distance because you'll be transmitting at 12W instead of 2, and you'll be tracked much more smoothly -- particularly if you're going fast and/or manuevering -- because the Class A update rate for dynamic data like position, speed, and heading is much more frequent than Class B. The problem is that the total install cost of Class A can be quite high and especially annoying on a modern boat with a NMEA 2000 network -- despite what you may have read on Panbo! -- because no Class A truly supported N2K until the AMEC Camino 701 came along (and it's not perfect yet)...

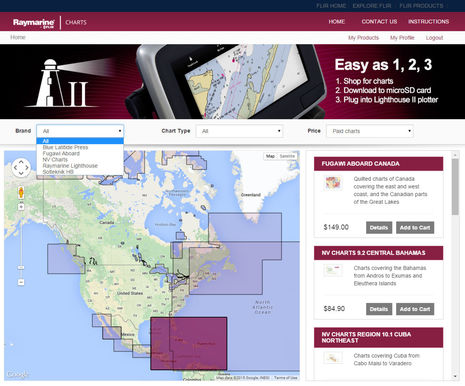

I heard in Miami that the online Raymarine Chart Store would soon open, but I had no idea how well stocked the virtual shelves would be. It was great when Ray enabled its own Lighthouse raster and vector chart format a year ago even though they only duplicated NOAA's entire free coverage of US coastal waters. Now there are more free charts available -- for other nations that also give their data away, like Brazil and New Zealand -- as well as access to an interesting array of commercial charts...

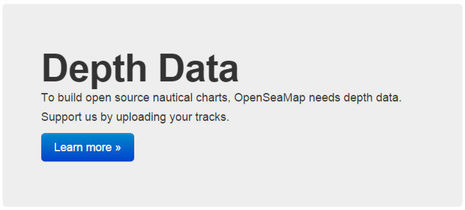

I've been cogitating a lot about crowdsourced depth data lately, including the realization that "community sourced" is a better term. Whatever it's called, Navionics in particular has made it wonderfully easy to collect and share sonar files and especially wow with the Vexilar integration. But the business stakes are high and thus we have the frustration of Navionics and Garmin butting heads. Upon further contemplation, a wistful thought from that last entry -- "Wouldn't it be great if we could upload our data to some service that would make it available to any chart developer?" -- seems not only important to avoiding further messes and helping this technology proliferate, but also quite possible...

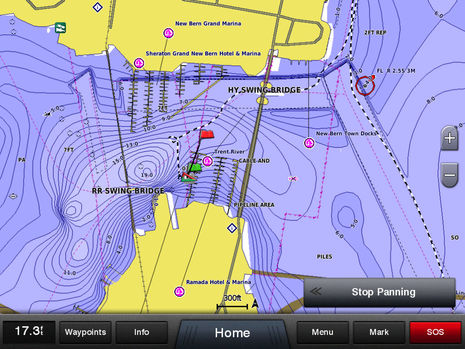

This screenshot shows the Garmin GPSMap 8212 installed on Gizmo displaying the same crowdsourced Navionics SonarChart bathymetric data that I recently enjoyed improving via the Navionics Boating app and Vexilar dinghy sonar. In fact, all the chart data seen above came from Navionics, even the beta version was fairly usable for navigation (I thought), and the finished chart cards are now for sale. But I doubt that many will be purchased once potential users realize how Garmin is reacting to this development! Navionics and Garmin seem nearly at war, and this entry will attempt to untangle what's happening. I fear there are no heroes in this battle, and it may even foreshadow further tensions in the critical world of chart and plotter manufacturers...

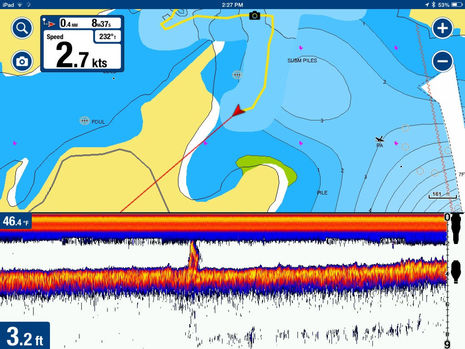

This mid-January screenshot represents a very pleasing experience in marine electronics testing. Thanks to a Vexilar SonarPhone T-Box SP200 and the Navionics Boating app I'm cruising around in my 9-foot dinghy with more than just charting and a fishfinder. I have access to three different chart formats plus a live SonarChart being created as I move along, and the data I'm collecting will be available to my fellow cruisers a week or two later. It sounds exotic, but the total cost was about $250 (iPad mini excepted), installation was fairly trivial, and it all worked quite well right out of the box.
